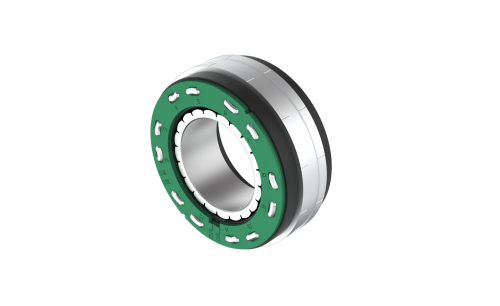

38BLF07-24V

Stator OD 38 mm | Rotor ID 18 mm | Rated Voltage 24 Vdc | Rated Torque 0.1 Nm | Rated Speed 8000 rpm

Product Code: 38BLF07-24V

Technical Data

Download

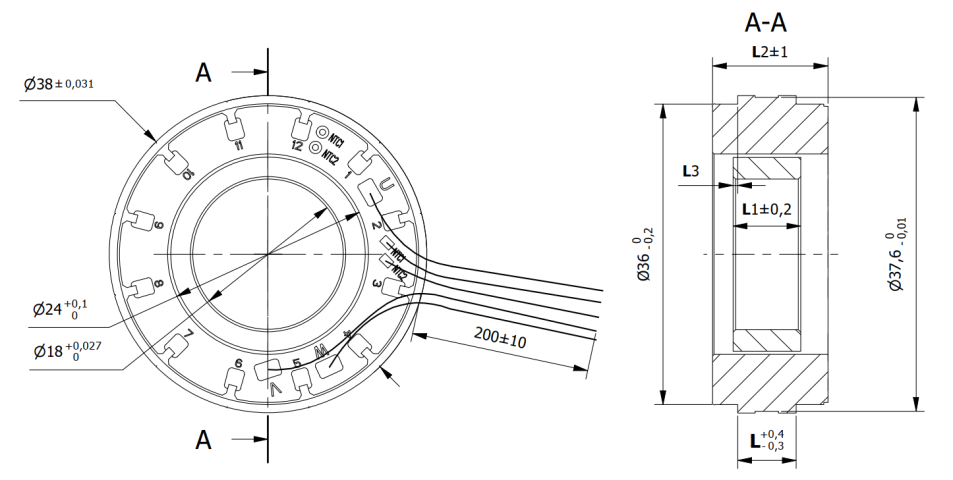

Dimensions

Stator OD	38 mm	Rotor ID	18 mm
Rated Voltage	24 Vdc	Rated Torque	0.1 Nm
Max. Peak Torque	0.3 Nm	Rated Speed	8000 rpm
Max. Speed	11000 rpm	n° of Pole	14
n° of Phase	3	Torque Constant	0.025 Nm/A
Rated Current	4.5 A	Max. Peak Current	13.5 A
No-Load Current	500 mA	Line to Line Resistance	0.37 Ohm
Line to Line Inductance	0.32 mH	Rotor Inertia	9.68 gcm²
Back EMF	1.54 Vrms/Krpm	Stator height (L)	7 mm
Rotor height (L1)	8.1 mm	Length (L2)	13.8 mm
Measure (L3)	0.55 mm	Weight	0.057 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
