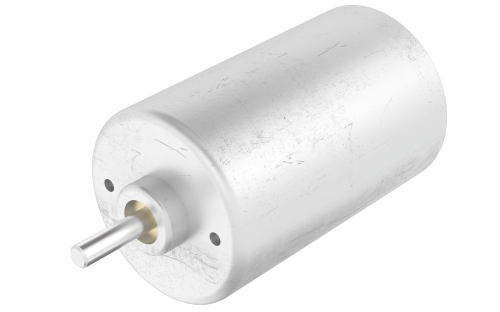

36CBL65

Series CBL | Size 36 mm | Length (L) 65 mm | Rated Voltage 24 Vdc | Rated Torque 0.09 Nm | Rated Speed 4800 rpm

Product Code: 36CBL65.000

Technical Data

Download

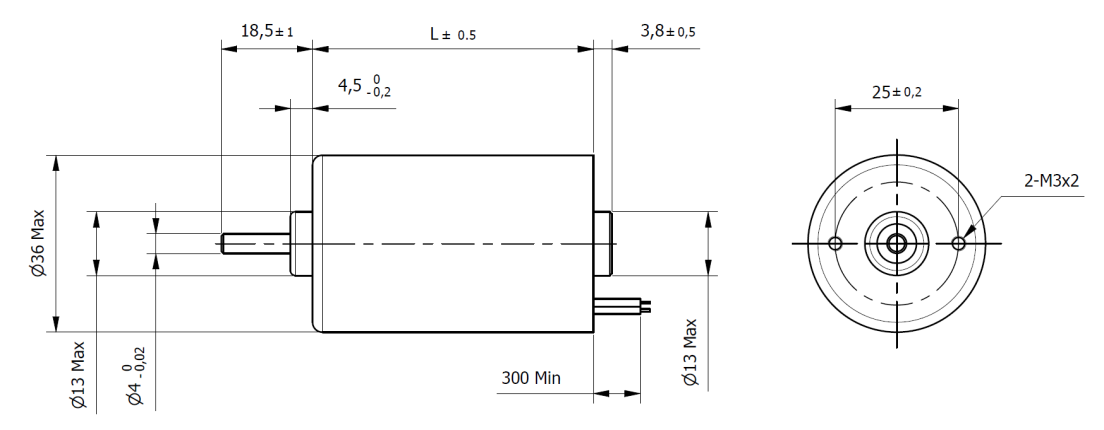

Dimensions

Series	CBL	Size	36 mm
Length (L)	65 mm	Weight	0.28 Kg
Rated Voltage	24 Vdc	Rated Torque	0.09 Nm
Rated Speed	4800 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.27 Nm
Torque Constant	0.036 Nm/A	Rated Current	2.5 A
Max. Peak Current	7.5 A	No-Load Current	400 mA
Line to Line Resistance	0.88 Ohm	Line to Line Inductance	0.8 mH
Rotor Inertia	32 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	15 N
Max. Axial Force	10 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
