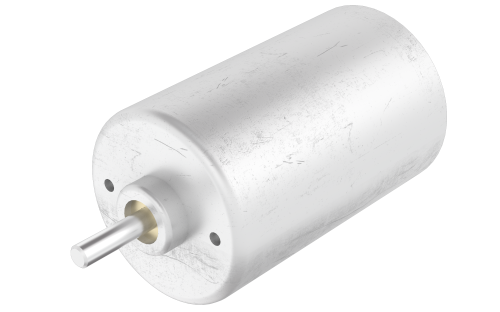

36CBL60

Series CBL | Size 36 mm | Length (L) 60 mm | Rated Voltage 24 Vdc | Rated Torque 0.08 Nm | Rated Speed 4800 rpm

Product Code: 36CBL60.000

Buy online:

Technical Data

Download

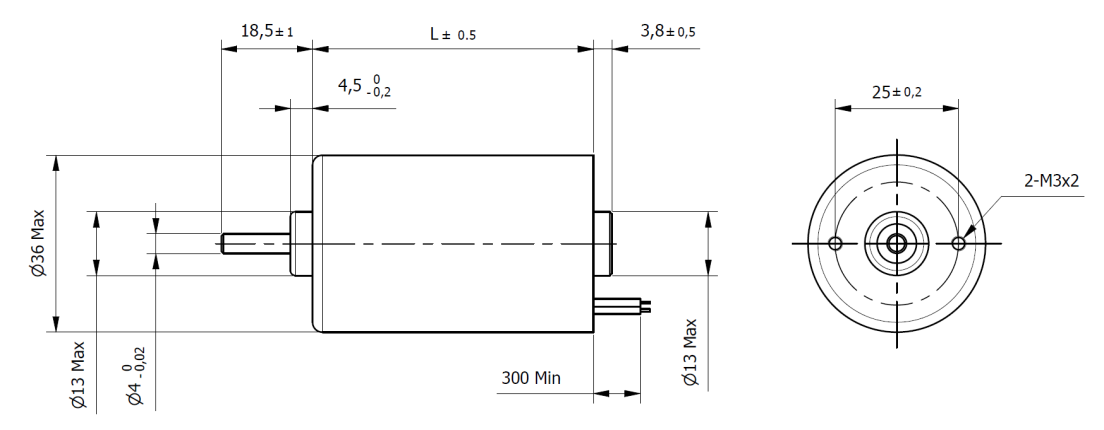

Dimensions

Series	CBL	Size	36 mm
Length (L)	60 mm	Weight	0.257 Kg
Rated Voltage	24 Vdc	Rated Torque	0.08 Nm
Rated Speed	4800 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.24 Nm
Torque Constant	0.035 Nm/A	Rated Current	2.3 A
Max. Peak Current	7 A	No-Load Current	220 mA
Line to Line Resistance	0.95 Ohm	Line to Line Inductance	0.85 mH
Rotor Inertia	30 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	15 N
Max. Axial Force	10 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
