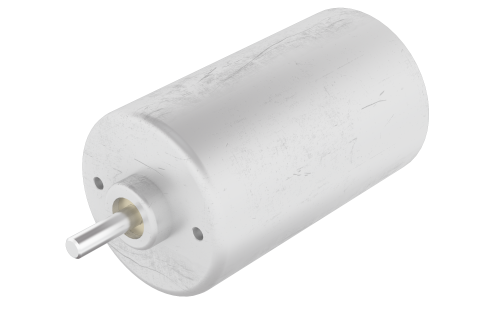

36CBL60-IE

Product Code: 36CBL60-IE.000

Technical Data

Download

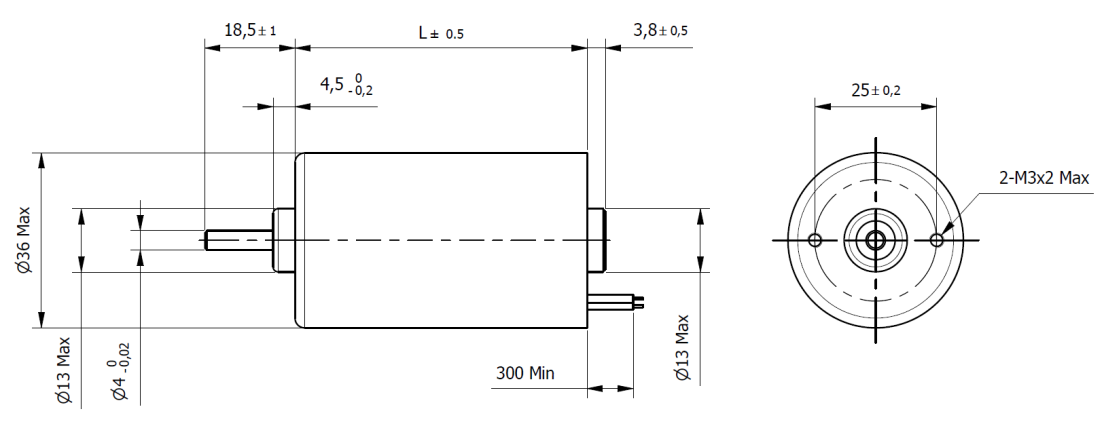

Dimensions

Size	36 mm	Length (L)	60 mm
Rated Torque	0.08 Nm	Rated Current	2.11 A
Rated Voltage	24 Vdc	Rated Speed	4800 rpm
n° of Pole	8	n° of Phase	3
Max. Peak Torque	0.24 Nm	Torque Constant	0.038 Nm/A
Max. Peak Current	6.5 A	No-Load Current	200 mA
Line to Line Resistance	0.9 Ohm	Line to Line Inductance	1.3 mH
Rotor Inertia	30 gcm²	Weight	0.30 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	15 N	Max. Axial Force	10 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
