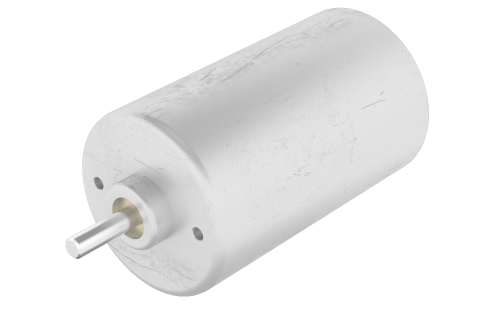

36CBL57-IE

Product Code: 36CBL57-IE.000

Technical Data

Download

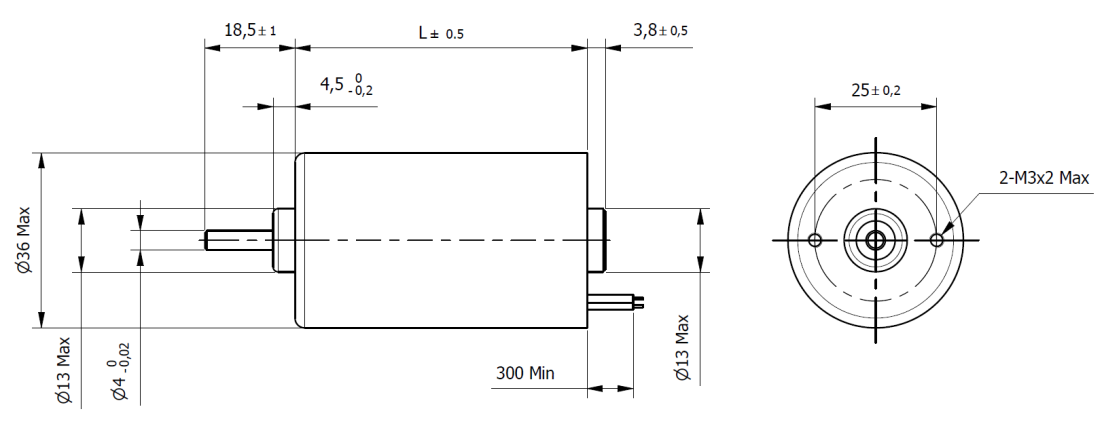

Dimensions

Size	36 mm	Length (L)	57 mm
Rated Torque	0.07 Nm	Rated Current	1.71 A
Rated Voltage	24 Vdc	Rated Speed	4500 rpm
n° of Pole	8	n° of Phase	3
Max. Peak Torque	0.21 Nm	Torque Constant	0.041 Nm/A
Max. Peak Current	5.3 A	No-Load Current	260 mA
Line to Line Resistance	1.3 Ohm	Line to Line Inductance	1.6 mH
Rotor Inertia	27 gcm²	Weight	0.25 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	15 N	Max. Axial Force	10 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
