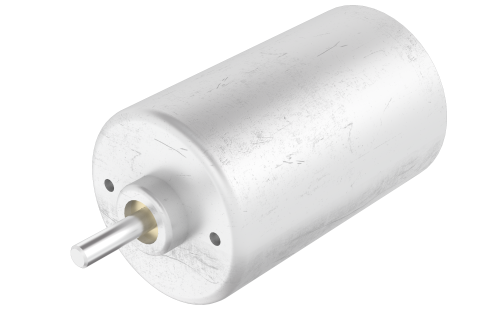

36CBL50

Series CBL | Size 36 mm | Length (L) 50 mm | Rated Voltage 24 Vdc | Rated Torque 0.055 Nm | Rated Speed 4800 rpm

Product Code: 36CBL50.000

Technical Data

Download

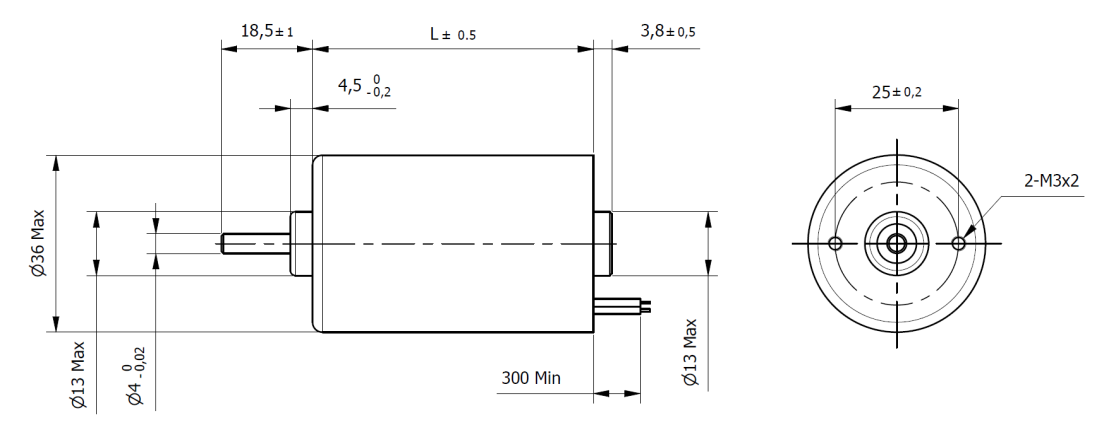

Dimensions

Series	CBL	Size	36 mm
Length (L)	50 mm	Weight	0.23 Kg
Rated Voltage	24 Vdc	Rated Torque	0.055 Nm
Rated Speed	4800 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.165 Nm
Torque Constant	0.036 Nm/A	Rated Current	1.5 A
Max. Peak Current	4.5 A	No-Load Current	250 mA
Line to Line Resistance	1.2 Ohm	Line to Line Inductance	1.2 mH
Rotor Inertia	22 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	15 N
Max. Axial Force	10 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
