Home Products > Motors with integrated Controller > Brushless DC motors with Speed controller > 36CBL -IE

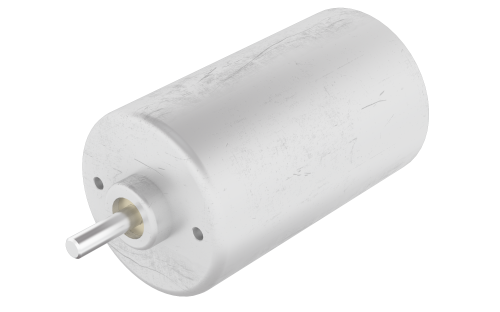

36CBL40-IE

Product Code: 36CBL40-IE.000

Technical Data

Download

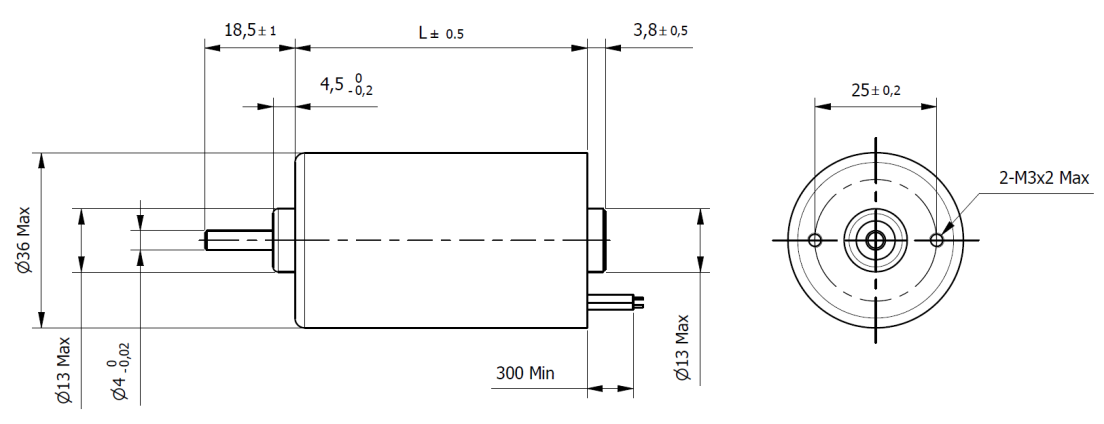

Dimensions

Size	36 mm	Length (L)	40 mm
Rated Torque	0.035 Nm	Rated Current	0.95 A
Rated Voltage	24 Vdc	Rated Speed	4800 rpm
n° of Pole	8	n° of Phase	3
Max. Peak Torque	0.11 Nm	Torque Constant	0.037 Nm/A
Max. Peak Current	3 A	No-Load Current	230 mA
Line to Line Resistance	2.7 Ohm	Line to Line Inductance	2.6 mH
Rotor Inertia	12 gcm²	Weight	0.18 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	15 N	Max. Axial Force	10 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
