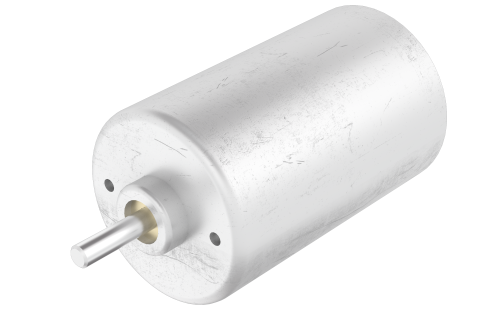

36CBL30

Series CBL | Size 36 mm | Length (L) 30 mm | Rated Voltage 24 Vdc | Rated Torque 0.016 Nm | Rated Speed 4800 rpm

Product Code: 36CBL30.000

Buy online:

Technical Data

Download

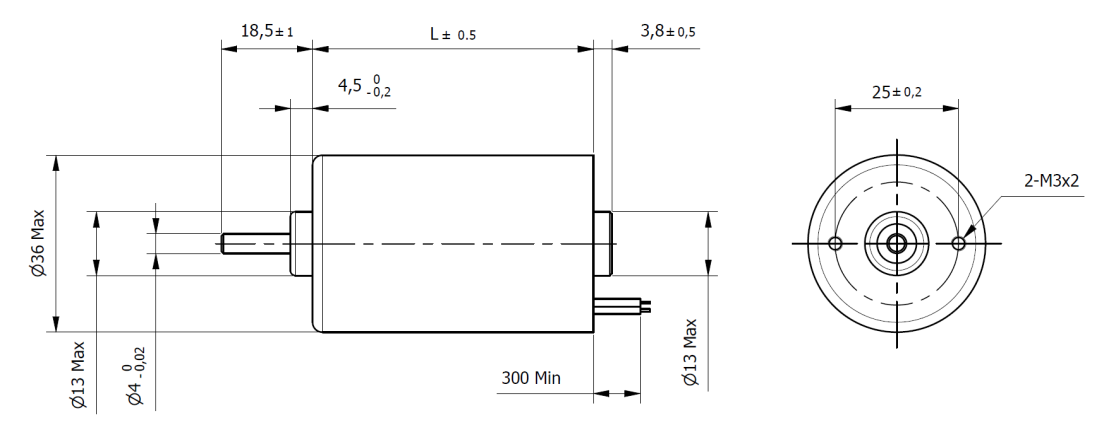

Dimensions

Series	CBL	Size	36 mm
Length (L)	30 mm	Weight	0.12 Kg
Rated Voltage	24 Vdc	Rated Torque	0.016 Nm
Rated Speed	4800 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.05 Nm
Torque Constant	0.036 Nm/A	Rated Current	0.44 A
Max. Peak Current	1.4 A	No-Load Current	150 mA
Line to Line Resistance	5.1 Ohm	Line to Line Inductance	3.3 mH
Rotor Inertia	6 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	15 N
Max. Axial Force	10 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
