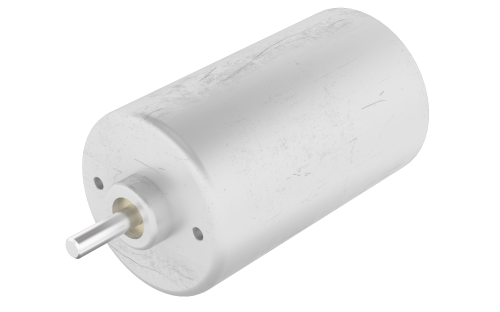

36CBL30-IE

Size 36 mm | Length (L) 30 mm | Rated Torque 0.016 Nm | Rated Current 0.47 A | Rated Voltage 24 Vdc

Product Code: 36CBL30-IE.000

Technical Data

Download

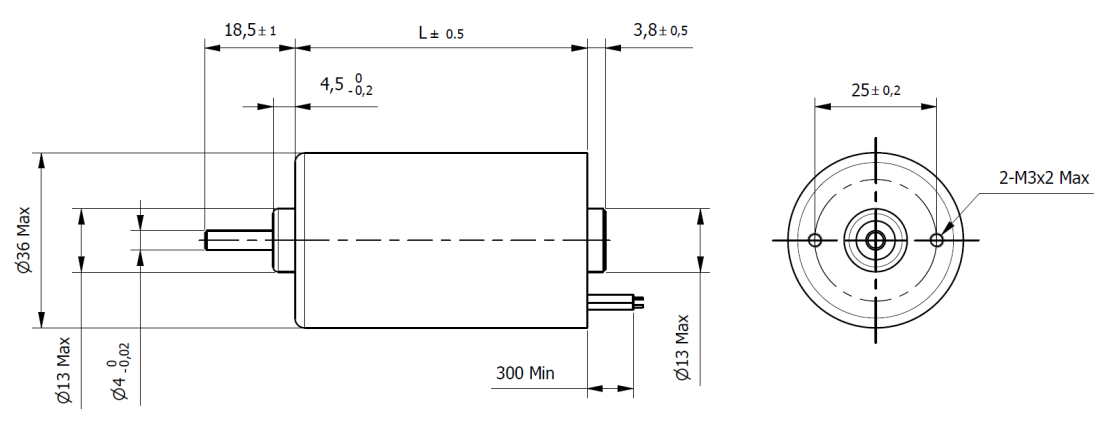

Dimensions

Size	36 mm	Length (L)	30 mm
Rated Torque	0.016 Nm	Rated Current	0.47 A
Rated Voltage	24 Vdc	Rated Speed	4800 rpm
n° of Pole	8	n° of Phase	3
Max. Peak Torque	0.05 Nm	Torque Constant	0.034 Nm/A
Max. Peak Current	1.4 A	No-Load Current	120 mA
Line to Line Resistance	7.8 Ohm	Line to Line Inductance	5.5 mH
Rotor Inertia	6 gcm²	Weight	0.12 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	15 N	Max. Axial Force	10 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
