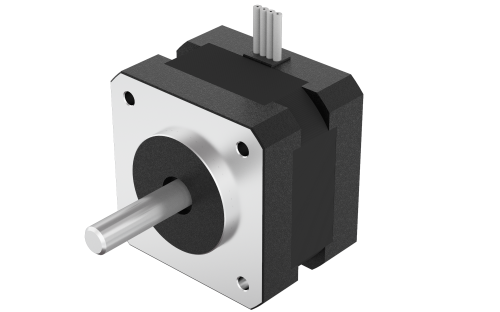

35SH36-1004A

Product Code: 35SH36-1004A.000

Technical Data

Download

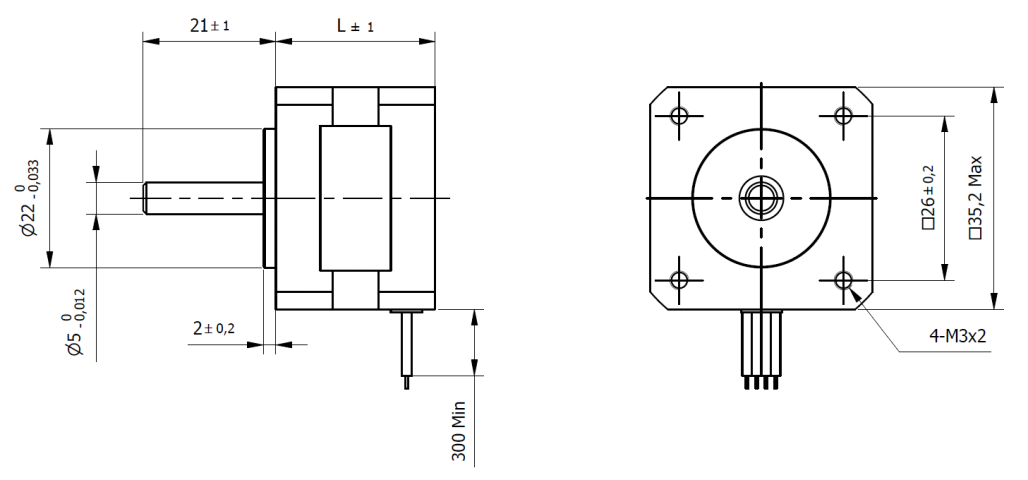

Dimensions

Series	SH	Size	35 mm
Nema	14	Length (L)	36 mm
Current/Phase	1 A	Holding Torque	0.14 Nm
Step Angle	1.8 °	Rated Voltage	2.7 Vdc
Resistance/Phase	2.7 Ohm	Inductance/Phase	4.3 mH
Rotor Inertia	14 gcm²	Detent Torque	0.010 Nm
N° of Leads	4	Weight	0.14 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
