35C47-15-CD

Product Code: 35C47-15-CD

Technical Data

Download

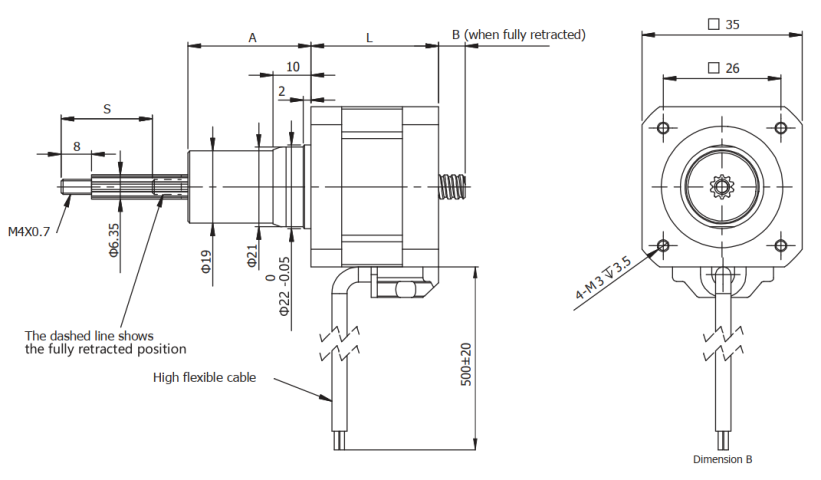

Dimensions

Size	35 mm	Nema	14
Length (L)	47 mm	Current/Phase	1.5 A
Rated Voltage	2.9 Vdc	Resistance/Phase	1.9 Ohm
Inductance/Phase	3.2 mH	N° of Leads	4
Rotor Inertia	30 gcm²	Weight	230 g
Thrust ref	48 N	Screw Diameter	6.35 mm
Screw Lead	12.7 mm	Travel per Step	0.0635 mm
Stroke Length	12.7 to 63.5mm (see datasheet)	Wiring	Bipolar
Step Angle	1.8 °	Insulation Class	B
Protection class	IP20	Operating Temperature	-20°C +50°C
Temperature Rise	max. 80 °C	Dielectric strength (for 1 sec.)	500 VAC
