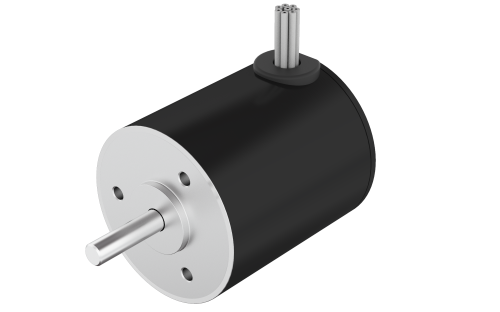

33BL80

Product Code: 33BL80.000

Technical Data

Download

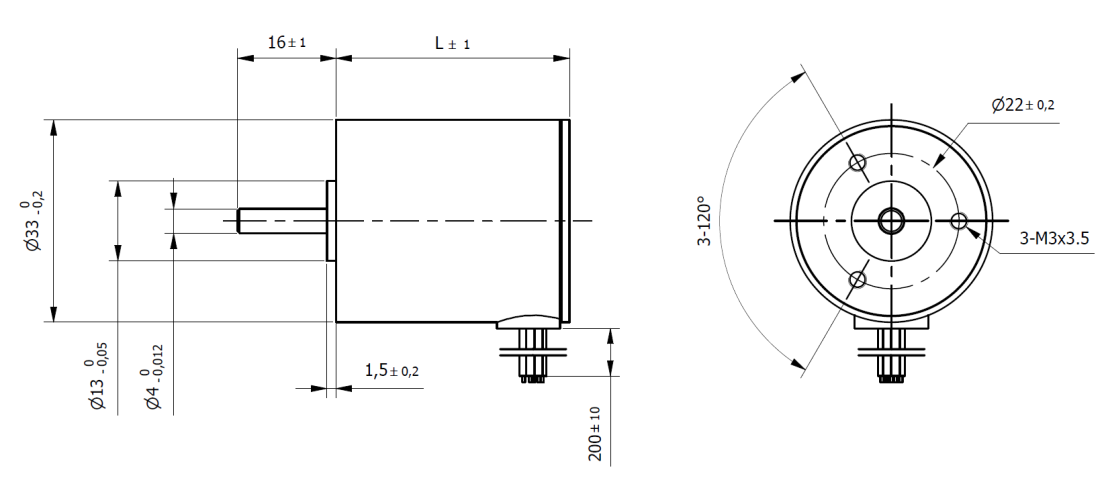

Dimensions

Series	BL	Size	33 mm
Length (L)	80 mm	Weight	0.02 Kg
Rated Voltage	24 Vdc	Rated Torque	0.05 Nm
Rated Speed	7800 rpm	n° of Pole	4
n° of Phase	3	Max. Peak Torque	0.15 Nm
Torque Constant	0.023 Nm/A	Rated Current	2.17 A
Max. Peak Current	4.8 A	No-Load Current	450 mA
Line to Line Resistance	0.86 Ohm	Line to Line Inductance	0.55 mH
Rotor Inertia	23.55 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	10 N
Max. Axial Force	2 N	Dielectric Strength (for 1min.)	360 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
