Home Products > Brushless DC motors > Brushless DC Flat motors > 32BLW

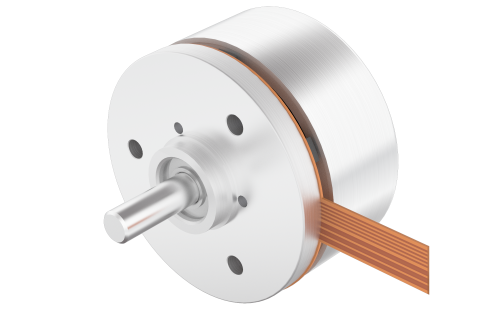

32BLW18-48V

Product Code: 32BLW18-48V.000

Technical Data

Download

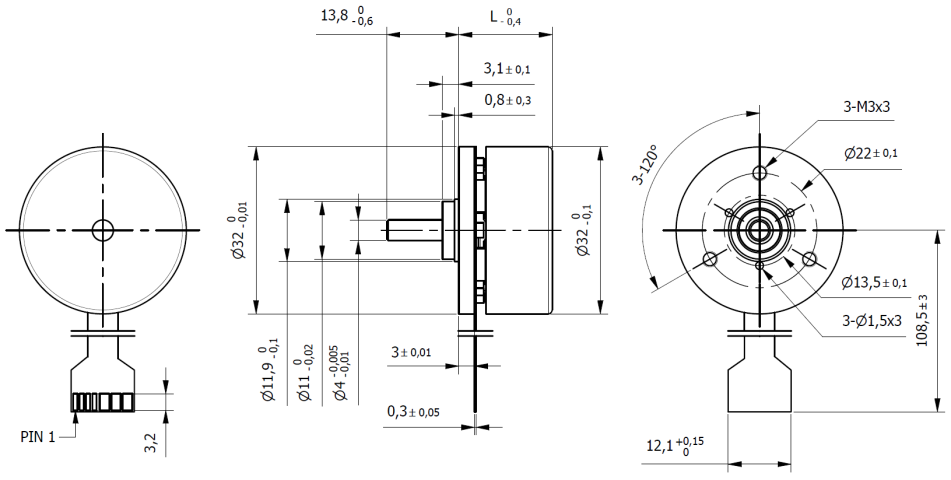

Dimensions

Size	32 mm	Length (L)	17.9 mm
Rated Voltage	48 Vdc	Rated Torque	0.025 Nm
Rated Speed	2950 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.075 Nm
Torque Constant	0.096 Nm/A	Rated Current	0.26 A
Max. Peak Current	0.97 A	No-Load Current	90 mA
Line to Line Resistance	53 Ohm	Line to Line Inductance	28 mH
Rotor Inertia	35 gcm²	Weight	0.05 Kg
Hall Effect Angle	120 °	Shaft run out	0.03 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.06 mm
Max. Radial Force (10mm from flange)	14 N	Max. Axial Force	4 N
Dielectric Strength (for 1min.)	250 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
