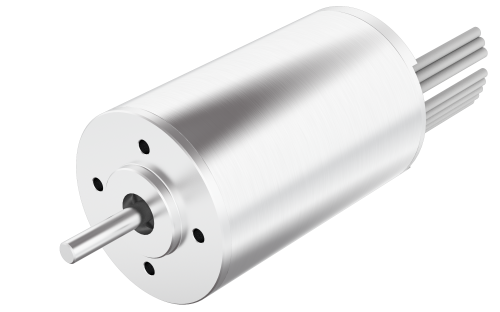

28SBL80

Product Code: 28SBL80.000

Technical Data

Download

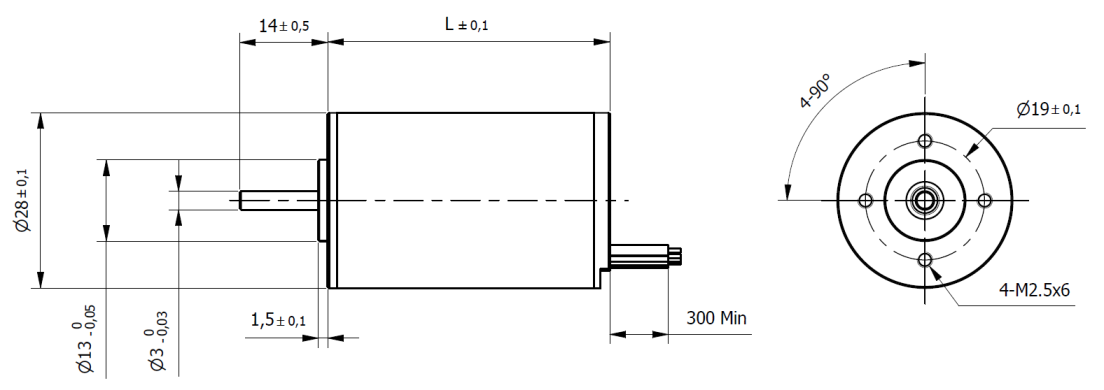

Dimensions

Series	SBL	Size	28 mm
Length (L)	80 mm	Length with Hall Sensors	80 mm
Rated Voltage	12 Vdc	Rated Torque	0.06 Nm
Rated Speed	6000 rpm	n° of Pole	2
n° of Phase	3	Max. Peak Torque	0.09 Nm
Torque Constant	15 mNm/A	Rated Current	4 A
Max. Peak Current	6.5 A	No-Load Current	500 mA
Line to Line Resistance	1 Ohm	Line to Line Inductance	0.011 mH
Rotor Inertia	20.2 gcm²	Weight	250 g
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (1000g load)	0.2 mm
Max. Radial Force (10mm from flange)	5 N	Max. Axial Force	2 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
