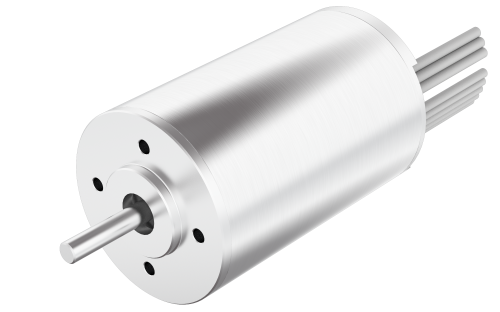

28SBL66

Product Code: 28SBL66.000

Technical Data

Download

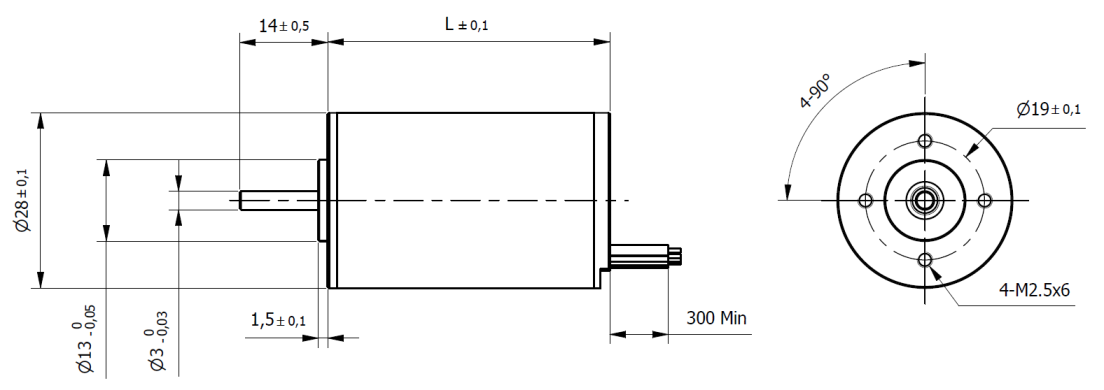

Dimensions

Series	SBL	Size	28 mm
Length (L)	66 mm	Length with Hall Sensors	66 mm
Rated Voltage	24 Vdc	Rated Torque	0.054 Nm
Rated Speed	14000 rpm	n° of Pole	2
n° of Phase	3	Max. Peak Torque	0.162 Nm
Torque Constant	15 mNm/A	Rated Current	3.53 A
Max. Peak Current	11 A	No-Load Current	400 mA
Line to Line Resistance	0.6 Ohm	Line to Line Inductance	0.064 mH
Rotor Inertia	16 gcm²	Weight	230 g
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (1000g load)	0.2 mm
Max. Radial Force (10mm from flange)	5 N	Max. Axial Force	2 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
