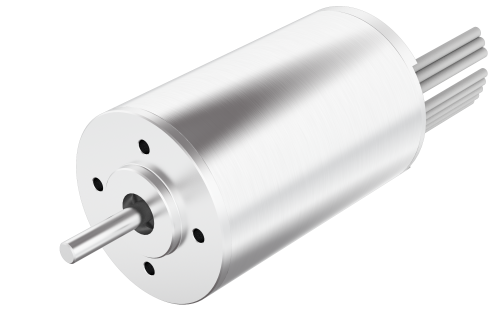

28SBL44

Product Code: 28SBL44.000

Technical Data

Download

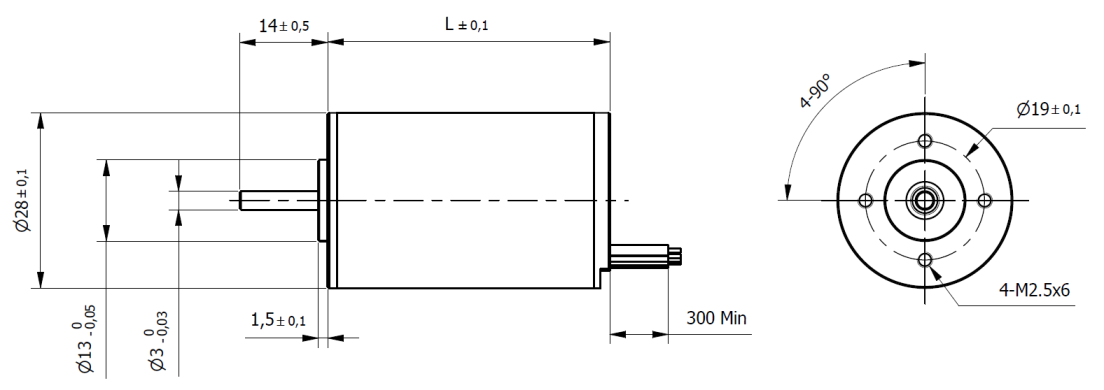

Dimensions

Series	SBL	Size	28 mm
Length (L)	44 mm	Length with Hall Sensors	52 mm
Rated Voltage	24 Vdc	Rated Torque	0.018 Nm
Rated Speed	8000 rpm	n° of Pole	2
n° of Phase	3	Max. Peak Torque	0.055 Nm
Torque Constant	23 mNm/A	Rated Current	0.08 A
Max. Peak Current	2.5 A	No-Load Current	200 mA
Line to Line Resistance	4.2 Ohm	Line to Line Inductance	0.42 mH
Rotor Inertia	8.8 gcm²	Weight	140 g
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (1000g load)	0.2 mm
Max. Radial Force (10mm from flange)	5 N	Max. Axial Force	2 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
