Home Products > Gearboxes > Planetary gearboxes > 28JMS

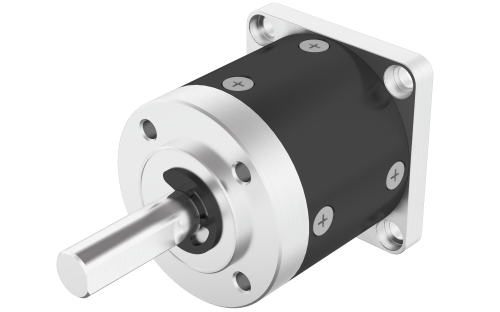

28JMS-2-13.76

Product Code: 28JMS-2-13.76.000

Technical Data

Download

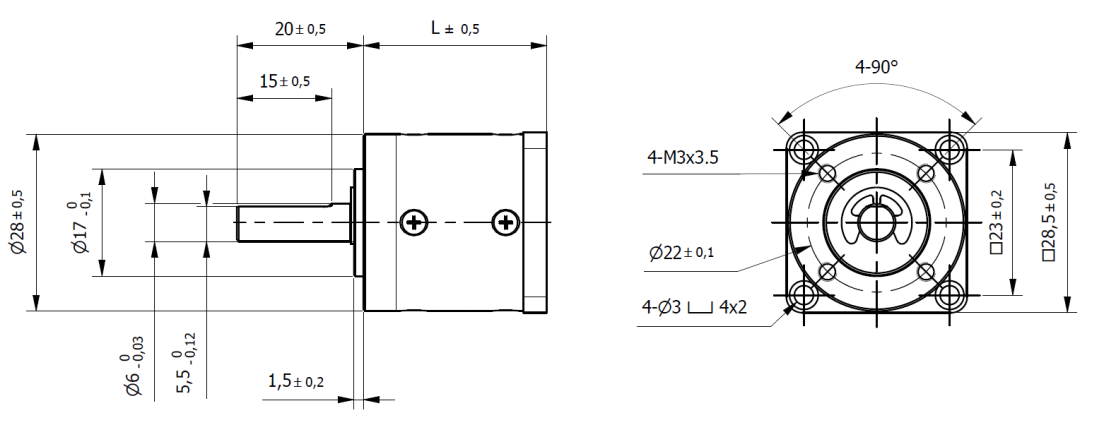

Dimensions

Series	JMS	Size	28 mm
Length (L)	36.1 mm	Stages	2
Reduction Ratio	13.76	Nominal Output Torque	2 Nm
Recommended Input Speed	4000 rpm	Max. Output Torque	6 Nm
Efficiency	81 %	Average Backlash No-load	≤1,2 °
Weight	97 g	Max. Radial load	100 N
Max. Axial load	50 N	Radial Play	<0.07mm
Axial Play	<0.3 mm	Press-Fit Max.	100 N
Operating Temperature	-20°C +80°C	Bearing output	Ball Bearings
