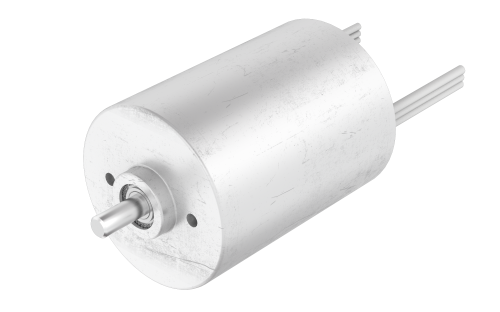

28CBL48

Product Code: 28CBL48.000

Technical Data

Download

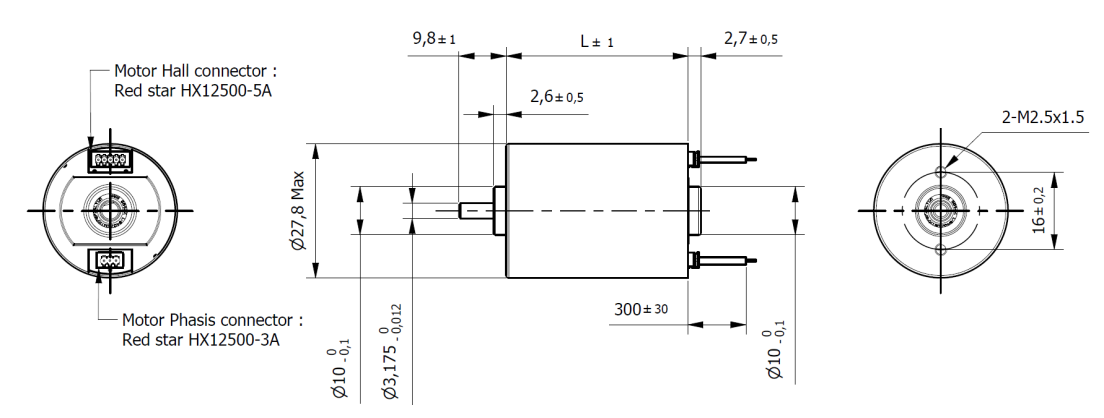

Dimensions

Series	CBL	Size	28 mm
Length (L)	48 mm	Weight	0.12 Kg
Rated Voltage	24 Vdc	Rated Torque	0.05 Nm
Rated Speed	4500 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.15 Nm
Torque Constant	0.036 Nm/A	Rated Current	1.4 A
Max. Peak Current	4.5 A	No-Load Current	180 mA
Line to Line Resistance	2.5 Ohm	Line to Line Inductance	1.2 mH
Rotor Inertia	7.3 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	5 N
Max. Axial Force	2 N	Dielectric strength (for 1 sec.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
