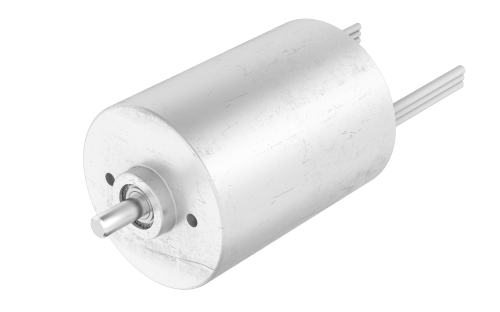

28CBL38

Product Code: 28CBL38.000

Buy online:

Technical Data

Download

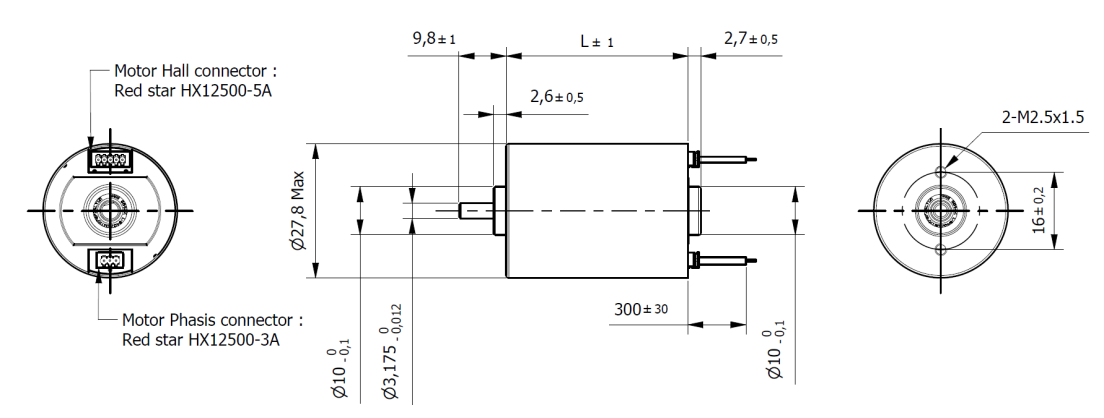

Dimensions

Series	CBL	Size	28 mm
Length (L)	38 mm	Weight	0.1 Kg
Rated Voltage	24 Vdc	Rated Torque	0.028 Nm
Rated Speed	4000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.084 Nm
Torque Constant	0.047 Nm/A	Rated Current	0.60 A
Max. Peak Current	2.3 A	No-Load Current	130 mA
Line to Line Resistance	5.69 Ohm	Line to Line Inductance	2.48 mH
Rotor Inertia	5.8 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.06 mm	Max. Radial Force (10mm from flange)	4 N
Max. Axial Force	4 N	Dielectric strength (for 1 sec.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
