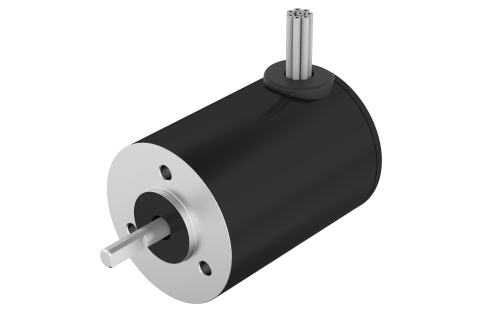

28BL38

Series BL | Size 28 mm | Length (L) 38 mm | Rated Voltage 24 Vdc | Rated Torque 0.016 Nm | Rated Speed 3100 rpm

Product Code: 28BL38.000

Technical Data

Download

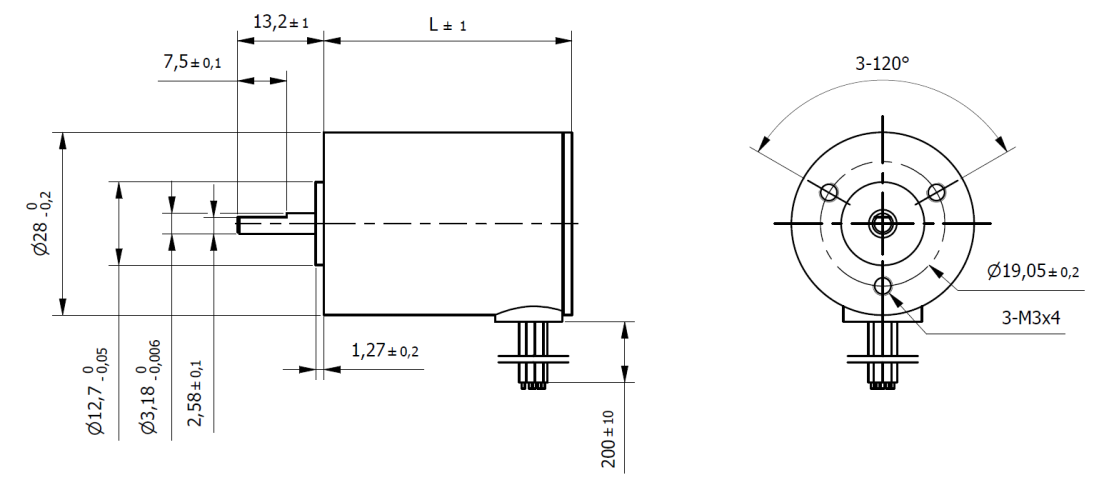

Dimensions

Series	BL	Size	28 mm
Length (L)	38 mm	Weight	0.082 Kg
Rated Voltage	24 Vdc	Rated Torque	0.016 Nm
Rated Speed	3100 rpm	n° of Pole	4
n° of Phase	3	Max. Peak Torque	0.048 Nm
Torque Constant	0.024 Nm/A	Rated Current	0.67 A
Max. Peak Current	2 A	No-Load Current	200 mA
Line to Line Resistance	20.5 Ohm	Line to Line Inductance	7.4 mH
Rotor Inertia	3.69 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	10 N
Max. Axial Force	2 N	Dielectric Strength (for 1min.)	360 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
