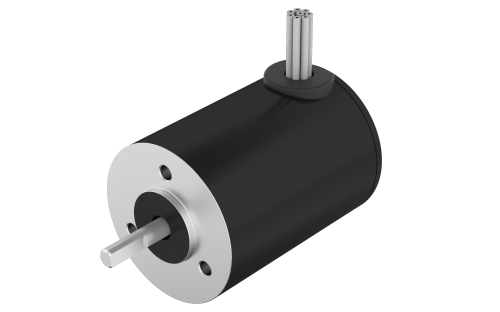

28BL26

Series BL | Size 28 mm | Length (L) 26 mm | Rated Voltage 15 Vdc | Rated Torque 0.005 Nm | Rated Speed 8000 rpm

Product Code: 28BL26.000

Technical Data

Download

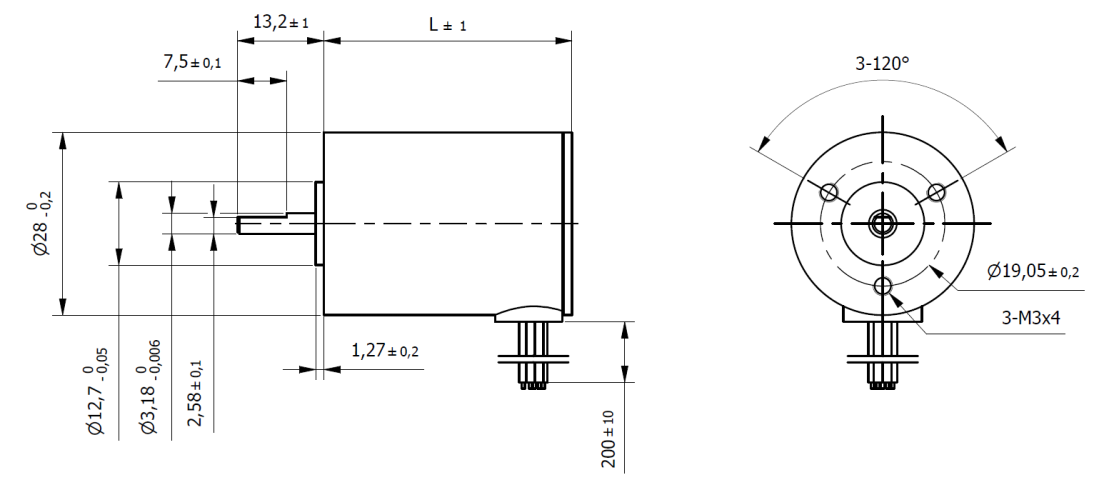

Dimensions

Series	BL	Size	28 mm
Length (L)	26 mm	Weight	0.06 Kg
Rated Voltage	15 Vdc	Rated Torque	0.005 Nm
Rated Speed	8000 rpm	n° of Pole	4
n° of Phase	3	Max. Peak Torque	0.015 Nm
Torque Constant	0.0143 Nm/A	Rated Current	0.35 A
Max. Peak Current	1.3 A	No-Load Current	200 mA
Line to Line Resistance	8.2 Ohm	Line to Line Inductance	2.3 mH
Rotor Inertia	2.35 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	10 N
Max. Axial Force	2 N	Dielectric Strength (for 1min.)	360 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
