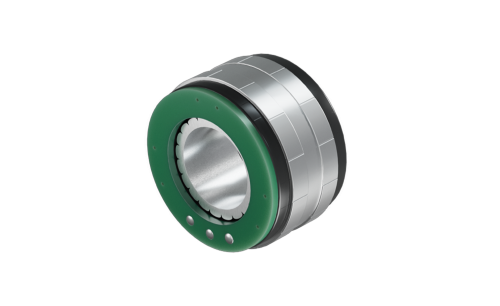

25BLF05-24V

Product Code: 25BLF05-24V

Technical Data

Download

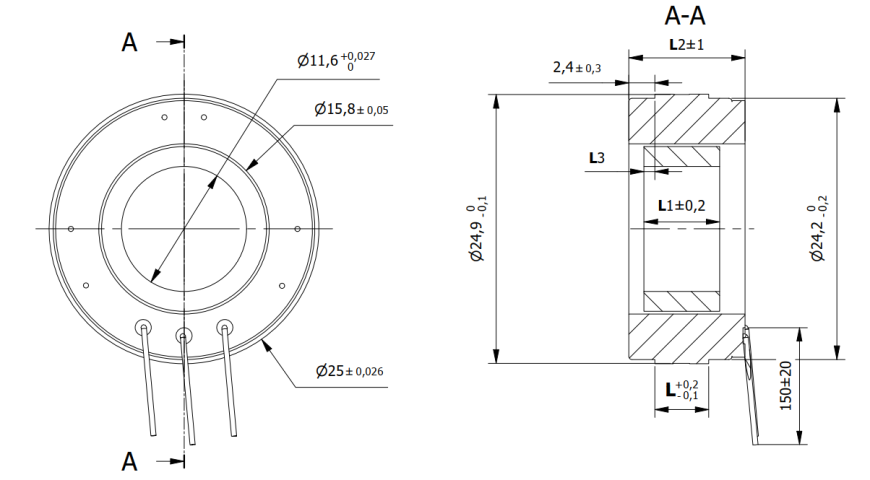

Dimensions

Stator OD	25 mm	Rotor ID	11.6 mm
Rated Voltage	24 Vdc	Rated Torque	0.032 Nm
Max. Peak Torque	0.105 Nm	Rated Speed	10000 rpm
Max. Speed	12300 rpm	n° of Pole	14
n° of Phase	3	Torque Constant	0.023 Nm/A
Rated Current	1.5 A	Max. Peak Current	5 A
No-Load Current	500 mA	Line to Line Resistance	1.7 Ohm
Line to Line Inductance	0.6 mH	Rotor Inertia	1.17 gcm²
Back EMF	1.37 Vrms/Krpm	Stator height (L)	5 mm
Rotor height (L1)	7 mm	Length (L2)	10.75 mm
Measure (L3)	1 mm	Weight	0.018 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
