Home Products > Brushless DC motors > Brushless DC Slotless motors > 22SBL

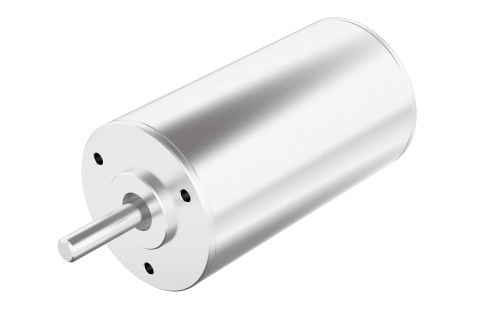

22SBL60

Product Code: 22SBL60.000

Technical Data

Download

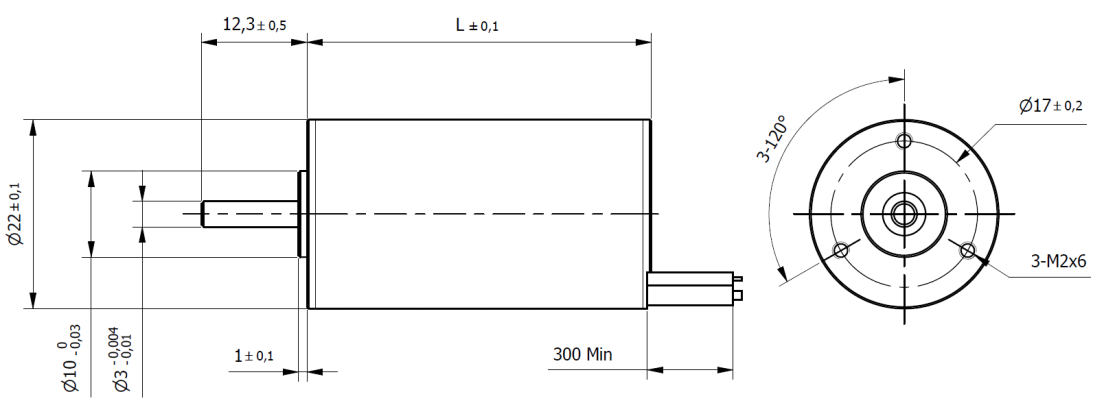

Dimensions

Series	SBL	Size	22 mm
Length (L)	60 mm	Length with Hall Sensors	68 mm
Rated Voltage	36 Vdc	Rated Torque	0.021 Nm
Rated Speed	32000 rpm	n° of Pole	2
n° of Phase	3	Max. Peak Torque	0.063 Nm
Torque Constant	8.4 mNm/A	Rated Current	3.8 A
Max. Peak Current	7.6 A	No-Load Current	500 mA
Line to Line Resistance	1 Ohm	Line to Line Inductance	0.07 mH
Rotor Inertia	3.2 gcm²	Weight	150 g
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.14 mm
Max. Radial Force (10mm from flange)	5 N	Max. Axial Force	2 N
Dielectric strength (for 1 sec.)	360 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
