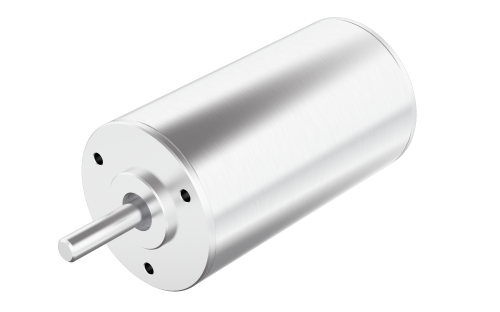

22SBL40

Product Code: 22SBL40.000

Technical Data

Download

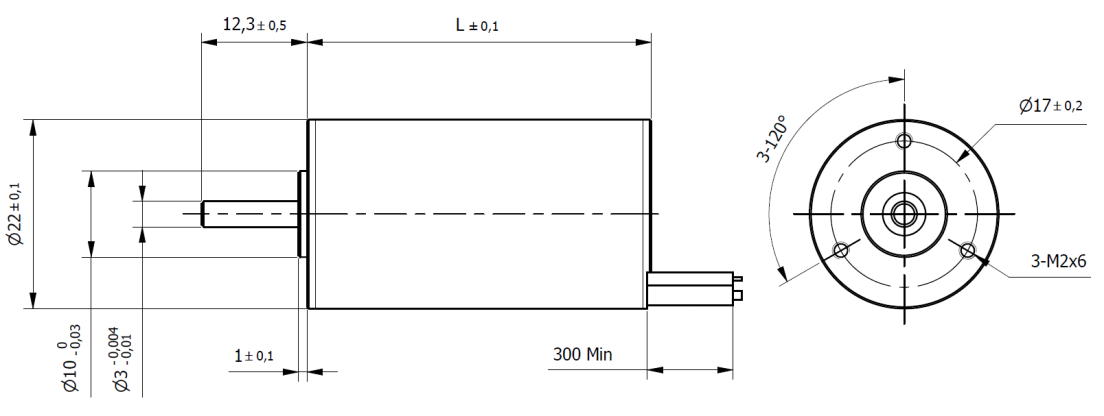

Dimensions

Series	SBL	Size	22 mm
Length (L)	40 mm	Length with Hall Sensors	48 mm
Rated Voltage	24 Vdc	Rated Torque	0.006 Nm
Rated Speed	35000 rpm	n° of Pole	2
n° of Phase	3	Max. Peak Torque	0.018 Nm
Torque Constant	5.7 mNm/A	Rated Current	1.1 A
Max. Peak Current	3.2 A	No-Load Current	400 mA
Line to Line Resistance	2 Ohm	Line to Line Inductance	0.13 mH
Rotor Inertia	1 gcm²	Weight	40 g
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.14 mm
Max. Radial Force (10mm from flange)	5 N	Max. Axial Force	2 N
Dielectric strength (for 1 sec.)	360 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
