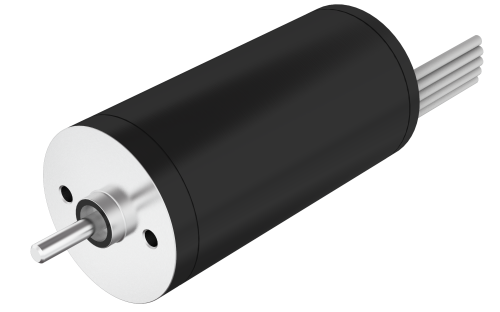

22BL45

Series BL | Size 22 mm | Length (L) 45 mm | Rated Voltage 24 Vdc | Rated Torque 0.008 Nm | Rated Speed 4600 rpm

Product Code: 22BL45.000

Buy online:

Technical Data

Download

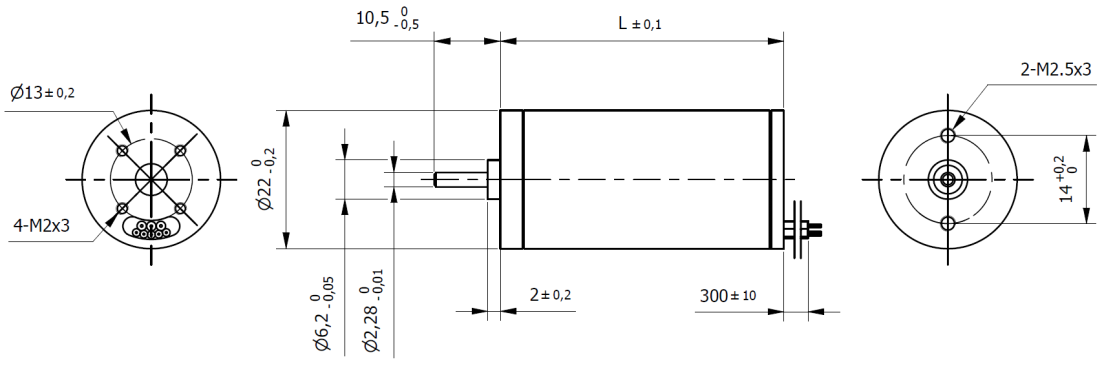

Dimensions

Series	BL	Size	22 mm
Length (L)	45 mm	Weight	0.07 Kg
Rated Voltage	24 Vdc	Rated Torque	0.008 Nm
Rated Speed	4600 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.024 Nm
Torque Constant	0.0302 Nm/A	Rated Current	0.26 A
Max. Peak Current	1.1 A	No-Load Current	150 mA
Line to Line Resistance	23 Ohm	Line to Line Inductance	6.2 mH
Rotor Inertia	0.66 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	10 N
Max. Axial Force	2 N	Dielectric strength (for 1 sec.)	360 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
