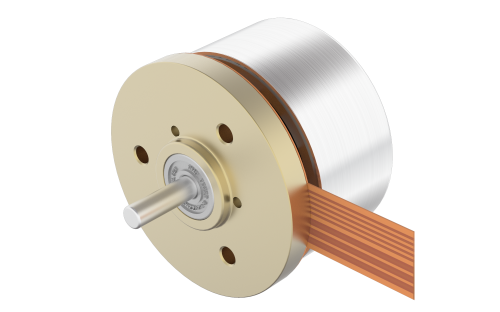

20BLW14-24V

Size 20 mm | Length (L) 14 mm | Rated Voltage 24 Vdc | Rated Torque 0.0077 Nm | Rated Speed 5220 rpm

Product Code: 20BLW14-24V.000

Buy online:

Technical Data

Download

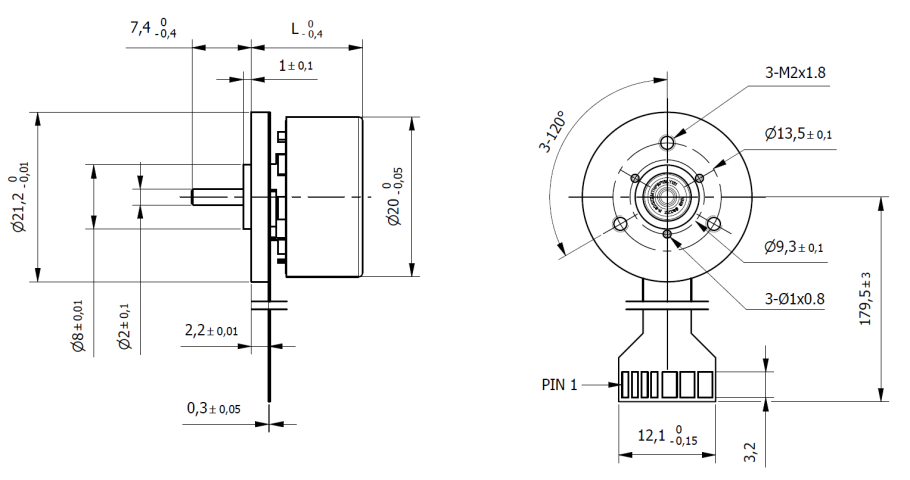

Dimensions

Size	20 mm	Length (L)	14 mm
Rated Voltage	24 Vdc	Rated Torque	0.0077 Nm
Rated Speed	5220 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.02 Nm
Torque Constant	0.024 Nm/A	Rated Current	0.32 A
Max. Peak Current	0.85 A	No-Load Current	120 mA
Line to Line Resistance	25.8 Ohm	Line to Line Inductance	2.8 mH
Rotor Inertia	5.1 gcm²	Weight	0.023 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	5 N	Max. Axial Force	2 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
