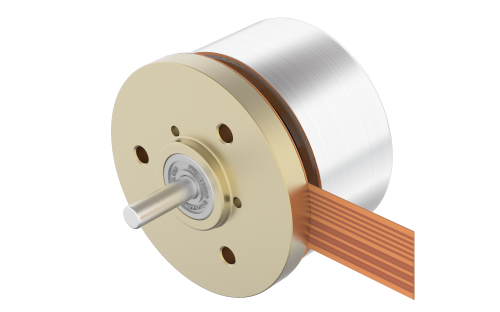

20BLW14-12V

Product Code: 20BLW14-12V.000

Buy online:

Technical Data

Download

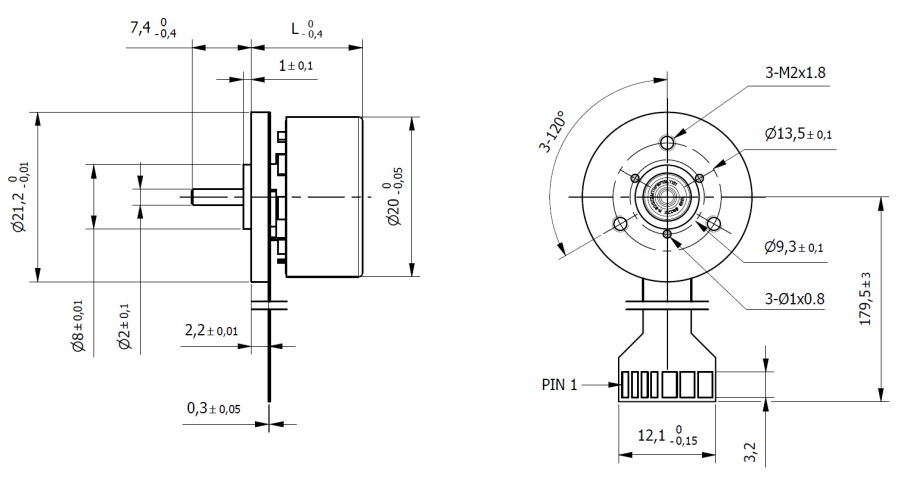

Dimensions

Size	20 mm	Length (L)	14 mm
Rated Voltage	12 Vdc	Rated Torque	0.0075 Nm
Rated Speed	5170 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	0.019 Nm
Torque Constant	0.012 Nm/A	Rated Current	0.63 A
Max. Peak Current	1.62 A	No-Load Current	230 mA
Line to Line Resistance	6.9 Ohm	Line to Line Inductance	0.7 mH
Rotor Inertia	5.1 gcm²	Weight	0.023 Kg
Hall Effect Angle	120 °	Shaft run out	0.025 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	5 N	Max. Axial Force	2 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
