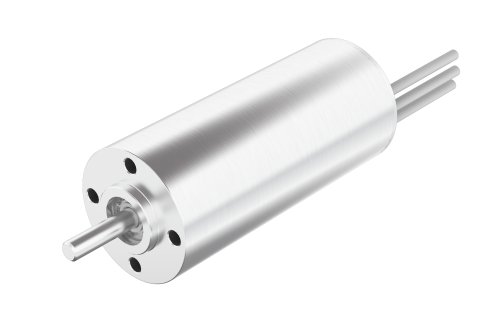

14SBL45

Product Code: 14SBL45.000

Technical Data

Download

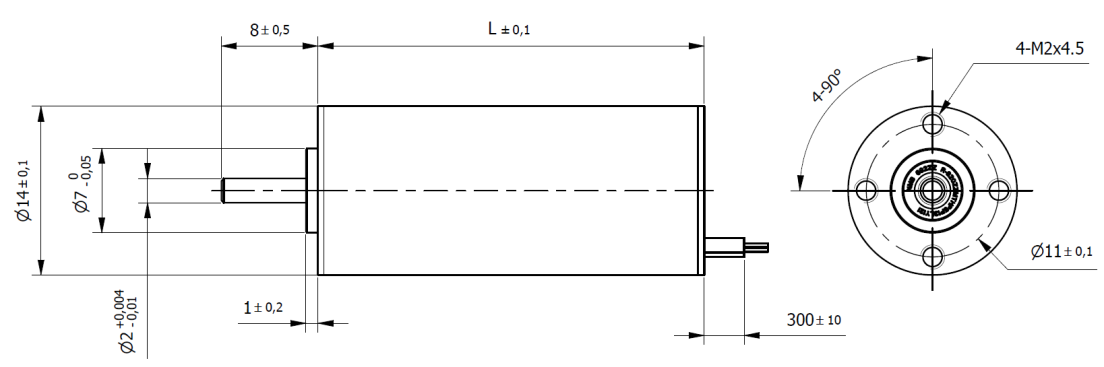

Dimensions

Series	SBL	Size	14 mm
Length (L)	36 mm	Rated Voltage	6 Vdc
Rated Torque	0.004 Nm	Rated Speed	10000 rpm
n° of Pole	2	n° of Phase	3
Max. Peak Torque	0.011 Nm	Torque Constant	5.3 mNm/A
Rated Current	0.8 A	Max. Peak Current	2.4 A
No-Load Current	100 mA	Line to Line Resistance	1.3 Ohm
Line to Line Inductance	0.06 mH	Rotor Inertia	0.34 gcm²
Weight	65 g	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	F
Protection Class	IP40	Radial Play (max.4N)	0.025 mm
Axial Play (max.4N)	0.3 mm	Max. Radial Force (10mm from flange)	15 N
Max. Axial Force	5 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
