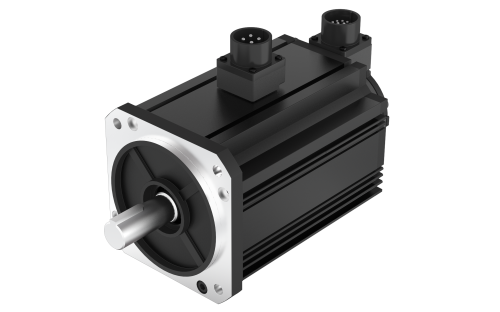

130SV200-48V-30EA2

Product Code: 130SV200-48V-30EA2

Technical Data

Download

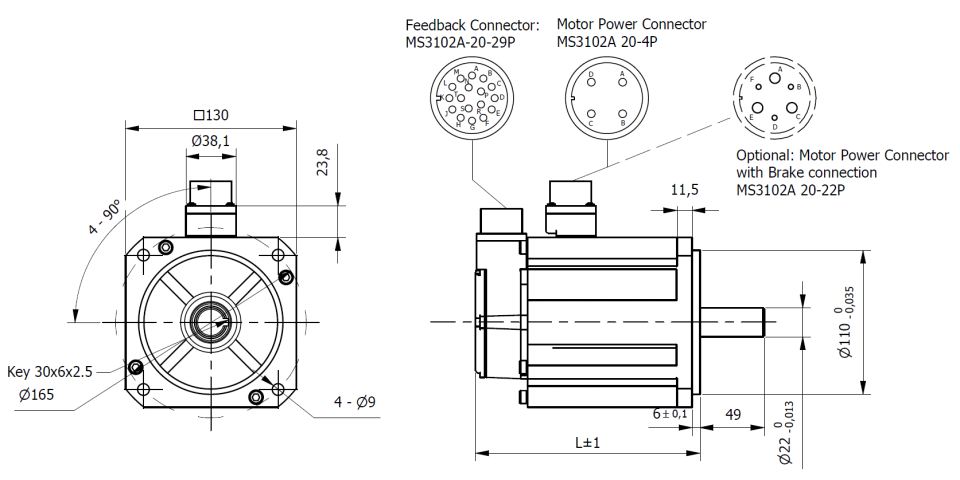

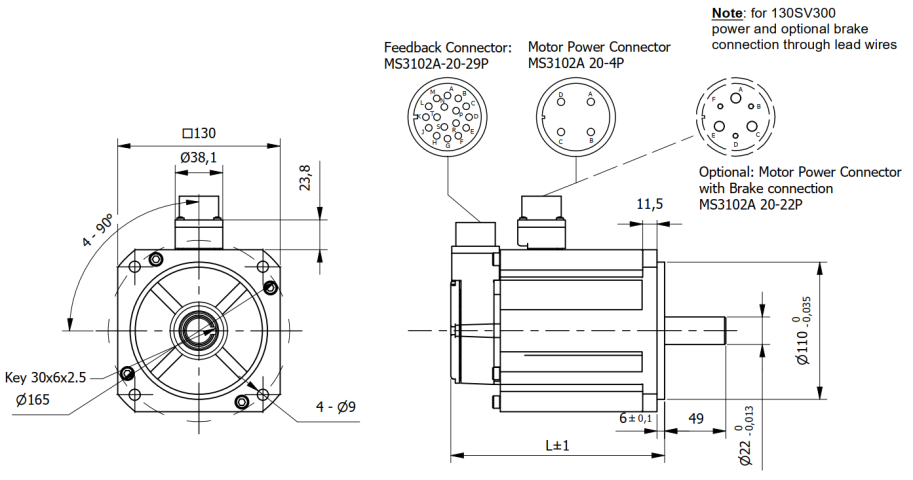

Dimensions

Size	130 mm	Length (L)	193 mm
Nominal Voltage	48 VDC	Rated Torque	9.55 Nm
Rated Speed	2000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	2000 Watt
No-Load Speed	3000±10% rpm	Max. Peak Torque	28.65 Nm
Torque Constant	0.2 Nm/A	Rated Current	52.9 A
Max. Peak Current	158.7 A	No-Load Current	<6 A
Back EMF constant	12 V/kRPM	Line to Line Resistance	0.025±10% Ohm
Line to Line Inductance	0.14±20% mH	Rotor Inertia	15.2 Kgcm²
Brake	24VDC - 16Nm	Weight	10 Kg
Protection Class	IP65	Insulation Class	F 155°C
Radial Play	0.02mm (max.4N)	Axial Play	0.12mm (max.4N) mm
Max. Radial Force (30mm from flange)	490 N	Max. Axial Force	196 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	on demand
