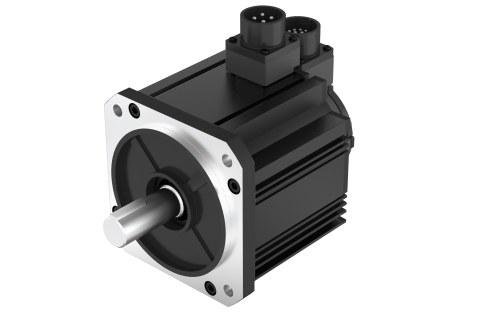

130SV200-220V-30EA1

Product Code: 130SV200-220V-30EA1

Technical Data

Download

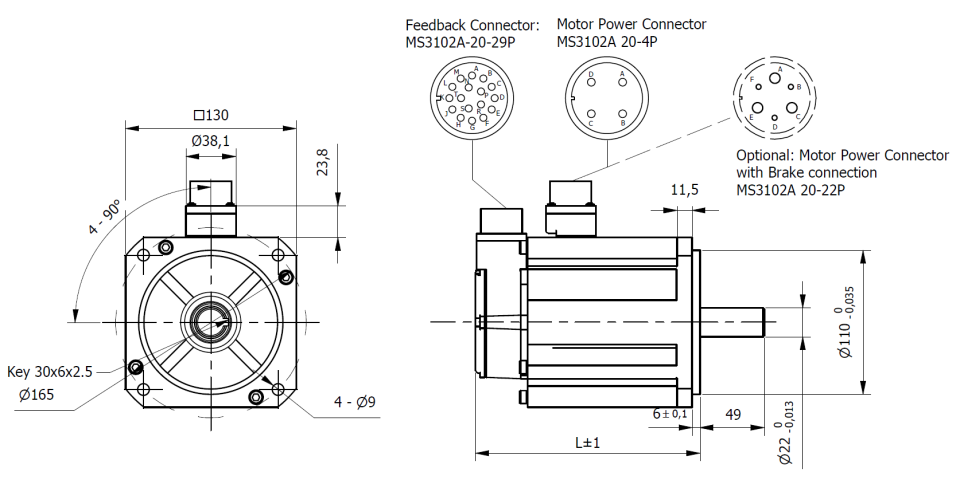

Dimensions

Size	130 mm	Length (L)	150 mm
Nominal Voltage	220 VAC	Rated Torque	9.55 Nm
Rated Speed	2000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	2000 Watt
No-Load Speed	3200±10% rpm	Max. Peak Torque	28.65 Nm
Torque Constant	1.12 Nm/A	Rated Current	9.3 A
Max. Peak Current	27.9 A	No-Load Current	<1 A
Back EMF constant	68 V/kRPM	Line to Line Resistance	0.8±10% Ohm
Line to Line Inductance	4.2±20% mH	Rotor Inertia	14 Kgcm²
Weight	7 Kg	Protection Class	IP65
Insulation Class	F 155°C	Radial Play	0.02mm (max.4N)
Axial Play	0.12mm (max.4N) mm	Max. Radial Force (30mm from flange)	490 N
Max. Axial Force	196 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Encoder Type - Standard	Optical incremental 2500CPR
Encoder Type - Optional	on demand
