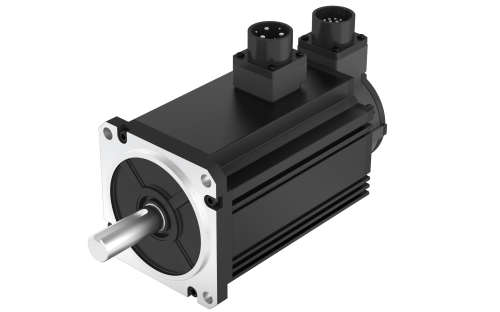

110SV200-220V-30EA2

Size 110 mm | Length (L) 204 mm | Nominal Voltage 220 VAC | Rated Torque 6.37 Nm | Rated Speed 3000 rpm | Brake 24VDC - 10Nm

Product Code: 110SV200-220V-30EA2

Technical Data

Download

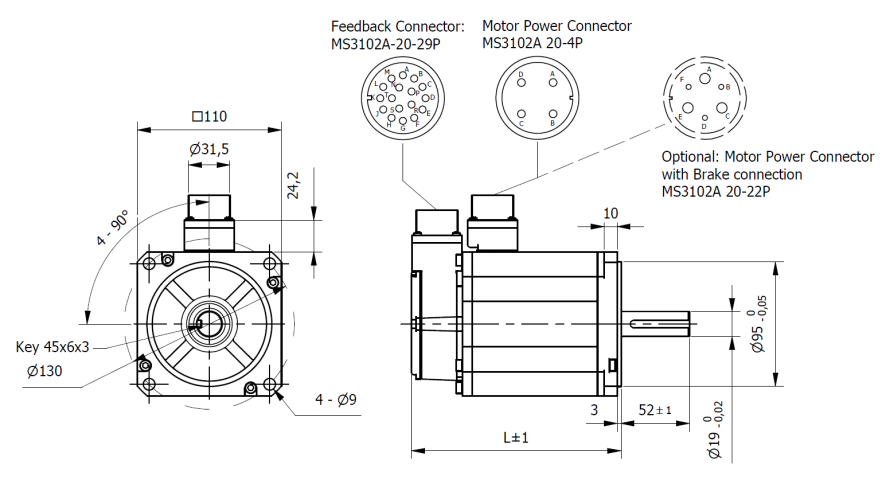

Dimensions

Size	110 mm	Length (L)	204 mm
Nominal Voltage	220 VAC	Rated Torque	6.37 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	2000 Watt
No-Load Speed	5000±10% rpm	Max. Peak Torque	19.1 Nm
Torque Constant	0.63 Nm/A	Rated Current	10.1 A
Max. Peak Current	30.3 A	No-Load Current	0.8 A
Back EMF constant	38.1 V/kRPM	Line to Line Resistance	0.29±10% Ohm
Line to Line Inductance	4.8±20% mH	Rotor Inertia	4.47 Kgcm²
Brake	24VDC - 10Nm	Weight	7.7 Kg
Protection Class	IP65	Insulation Class	F 155°C
Radial Play	0.02mm (max.4N)	Axial Play	0.08mm (max.4N) mm
Max. Radial Force (20mm from flange)	630 N	Max. Axial Force	315 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	on demand
