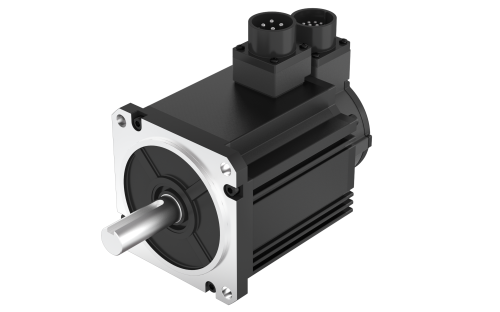

110SV150-220V-30EA1

Product Code: 110SV150-220V-30EA1

Technical Data

Download

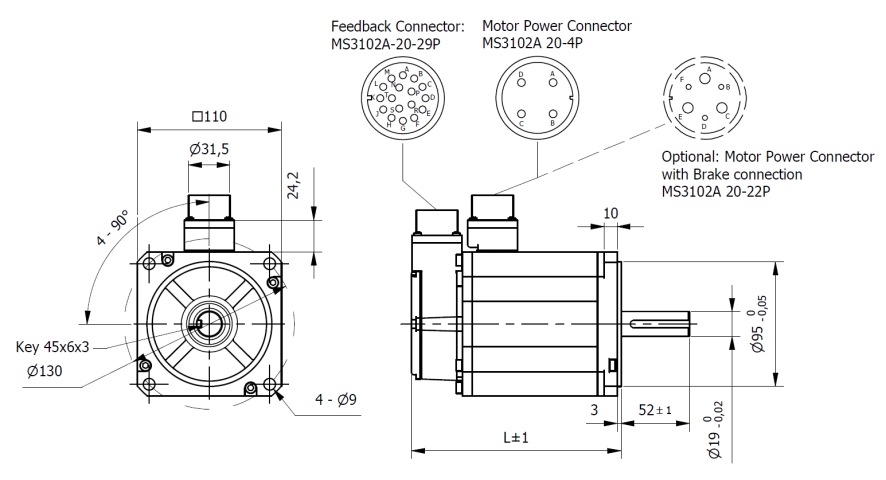

Dimensions

Size	110 mm	Length (L)	151.5 mm
Nominal Voltage	220 VAC	Rated Torque	4.77 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	1500 Watt
No-Load Speed	5000±10% rpm	Max. Peak Torque	14.3 Nm
Torque Constant	0.63 Nm/A	Rated Current	7.6 A
Max. Peak Current	22.8 A	No-Load Current	0.8 A
Back EMF constant	38.1 V/kRPM	Line to Line Resistance	0.36±10% Ohm
Line to Line Inductance	5.6±20% mH	Rotor Inertia	3.1 Kgcm²
Weight	5 Kg	Protection Class	IP65
Insulation Class	F 155°C	Radial Play	0.02mm (max.4N)
Axial Play	0.08mm (max.4N) mm	Max. Radial Force (20mm from flange)	630 N
Max. Axial Force	315 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Encoder Type - Standard	Optical incremental 2500CPR
Encoder Type - Optional	on demand
