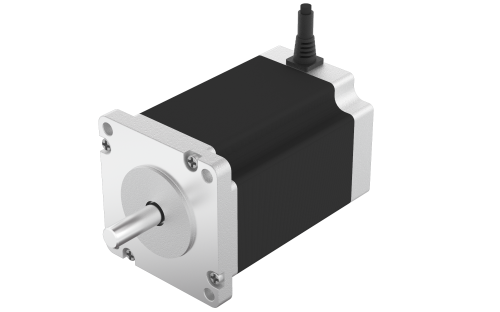

110SH99-5504A

Product Code: 110SH99-5504A.000

Technical Data

Download

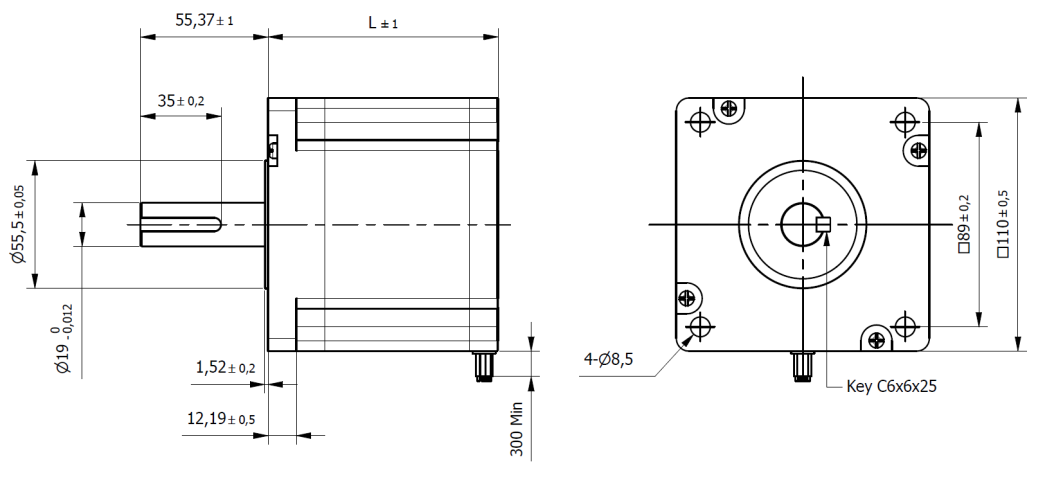

Dimensions

Series	SH	Size	110 mm
Nema	42	Length (L)	99 mm
Current/Phase	5.5 A	Holding Torque	11.2 Nm
Step Angle	1.8 °	Rated Voltage	4.95 Vdc
Resistance/Phase	0.7 Ohm	Inductance/Phase	9.8 mH
Rotor Inertia	5500 gcm²	Detent Torque	0.294 Nm
N° of Leads	4	Weight	5 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	330 N
Max. Axial Force	100 N	Dielectric Strength (for 1min.)	1500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
