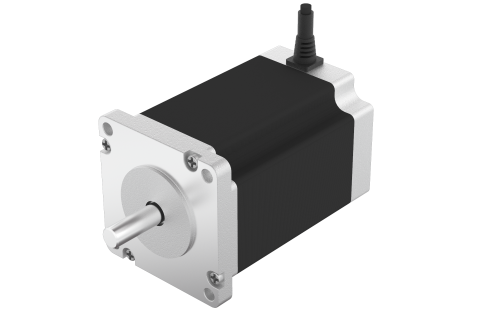

110SH150-6504A

Product Code: 110SH150-6504A.000

Technical Data

Download

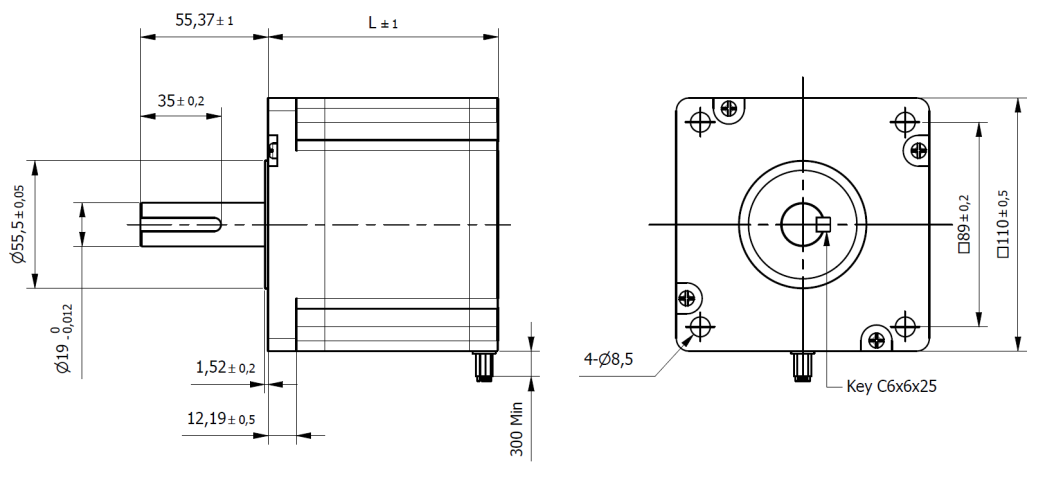

Dimensions

Series	SH	Size	110 mm
Nema	42	Length (L)	150 mm
Current/Phase	6.5 A	Holding Torque	21 Nm
Step Angle	1.8 °	Rated Voltage	5.2 Vdc
Resistance/Phase	0.72 Ohm	Inductance/Phase	11.5 mH
Rotor Inertia	10900 gcm²	Detent Torque	0.824 Nm
N° of Leads	4	Weight	8.4 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	330 N
Max. Axial Force	100 N	Dielectric Strength (for 1min.)	1500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
