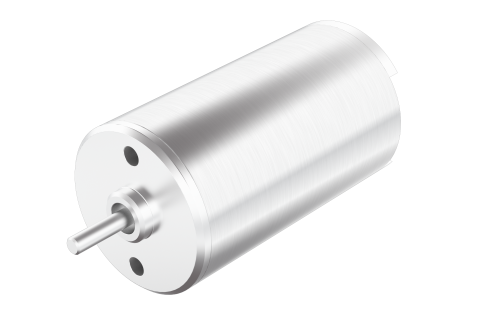

10SBL19

Product Code: 10SBL19.000

Technical Data

Download

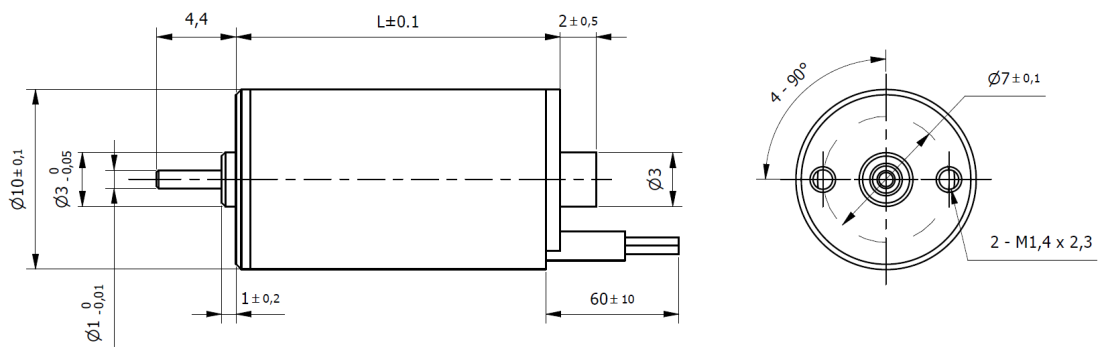

Dimensions

Series	SBL	Size	10 mm
Length (L)	19.4 mm	Rated Voltage	3.7 Vdc
Rated Torque	0.0005 Nm	Rated Speed	7000 rpm
n° of Pole	2	n° of Phase	3
Max. Peak Torque	0.001 Nm	Torque Constant	2.35 mNm/A
Rated Current	0.2 A	Max. Peak Current	0.4 A
No-Load Current	50 mA	Line to Line Resistance	4.82 Ohm
Line to Line Inductance	00.08 mH	Rotor Inertia	0.05 gcm²
Weight	10 g	Hall Effect Angle	120 °
Insulation Class	B	Protection Class	IP40
Radial Play (max.4N)	0.02 mm	Axial Play (max.4N)	0.14 mm
Max. Radial Force (5mm from flange)	3 N	Max. Axial Force	2 N
Dielectric strength (for 1 sec.)	360 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
