Home Products > Servomotors > Medium voltage servomotors > 100SV-220VAC

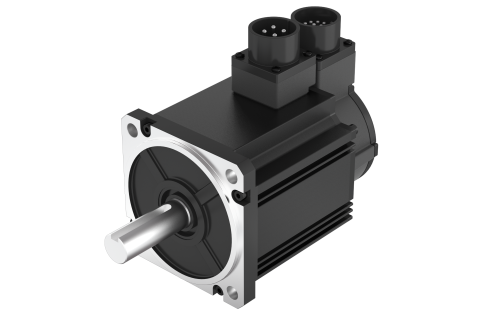

100SV100-220V-30EA1

Product Code: 100SV100-220V-30EA1

Technical Data

Download

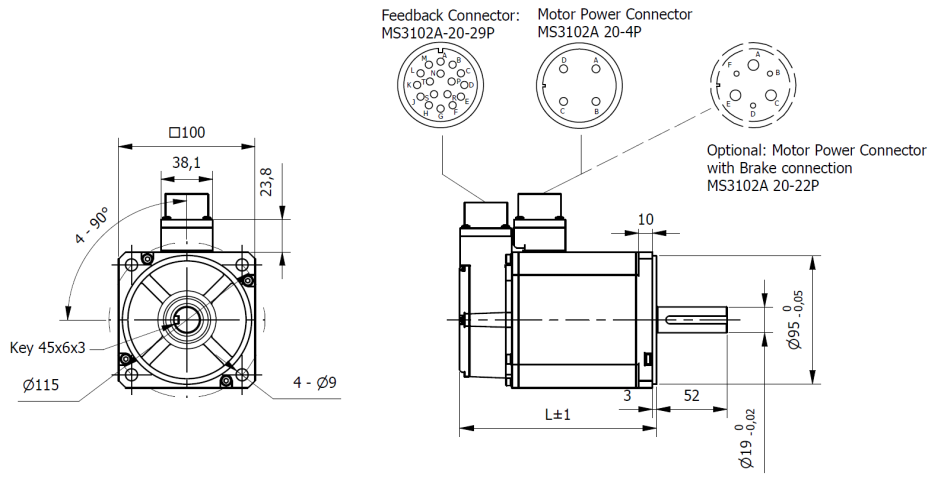

Dimensions

Size	100 mm	Length (L)	137 mm
Nominal Voltage	220 VAC	Rated Torque	3.18 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	1000 Watt
No-Load Speed	5000±10% rpm	Max. Peak Torque	7 Nm
Torque Constant	0.63 Nm/A	Rated Current	5 A
Max. Peak Current	11 A	No-Load Current	0.8 A
Back EMF constant	38 V/kRPM	Line to Line Resistance	0.82±10% Ohm
Line to Line Inductance	7.4±20% mH	Rotor Inertia	1.3 Kgcm²
Weight	3.73 Kg	Protection Class	IP65
Insulation Class	F 155°C	Radial Play	0.02mm (max.4N)
Axial Play	0.08mm (max.4N) mm	Max. Radial Force (20mm from flange)	490 N
Max. Axial Force	196 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Encoder Type - Standard	Optical incremental 2500CPR
Encoder Type - Optional	on demand
